Battery Operated Quartz Movement Clock Power Supply: 2×1.5V. alkaline batteries, size “D” Duration: 2 years Accuracy: 0.6 sec/month between 20 and 25′C Operating Temperature: -10 to +50′C
Mains Operated Quartz Movement Clock Power supply: 120 to 240 VAC, ~50/60Hz Accuracy: 0.6 sec/month between 20 and 25′C Operating Temperature: -10 to +50′C
Mains Operated Quartz Movement with Power Reserve Clock Power supply: 120 to 240 V.AC. ~50/60Hz Power reserve: 10 days Accuracy: 0.6 sec/month between 20 and 25′C Operating Temperature: -5 to +50′C

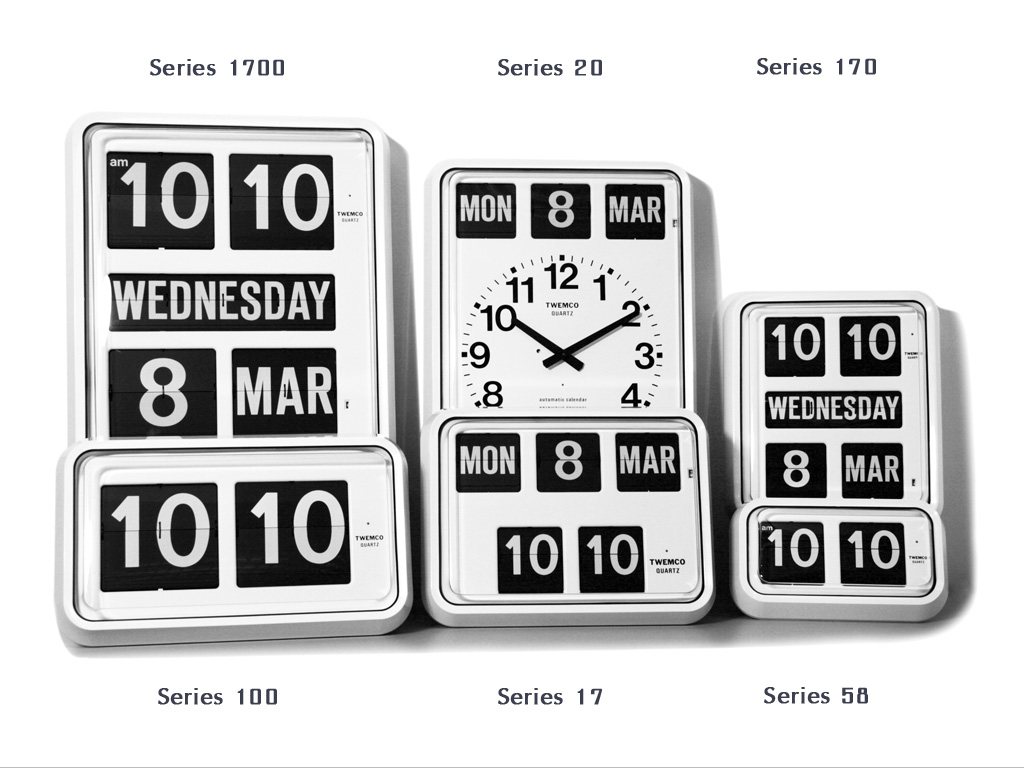

Commercial series
The commercial series are featured in 4 movements mechanism listed below.
Power Supply: 2×1.5V. alkaline batteries, size “D”
Duration: 2 years
Accuracy: 0.6 sec/month between 20 and 25′C
Operating Temperature: -10 to +50′C
Power supply: 120 to 240 VAC, ~50/60Hz
Accuracy: 0.6 sec/month between 20 and 25′C
Operating Temperature: -10 to +50′C
Power supply: 120 to 240 V.AC. ~50/60Hz
Power reserve: 10 days
Accuracy: 0.6 sec/month between 20 and 25′C
Operating Temperature: -5 to +50′C
Parallel connection On 2 wires
Polarized minute impulses: 24V
Minimum voltage: 18V
Consumption: 23mA
Minimum Duration: 0.7 sec
Operating Temperature: -20 to +70′C
